Industrial Tumble Dryers
75 lb capacity - UT075NVN
UniMac® tumble dryers are in a league of their own in terms of performance and efficiency. These durable commercial laundry machines achieve the perfect balance between drying temperature, airflow pattern and usable cylinder space for optimal drying results while significantly reducing utility and labor costs. To further reduce operating expenses, these industrial laundry machines feature innovations like the revolutionary OPTidry™ Over-dry Prevention Technology. Available in a variety of sizes, UniMac commercial tumble dryers meet the needs of commercial and on-premises laundries of all types and sizes.
Available Options
Specifications
Control OptionsUniLinc Touch, M-Series, Dual Digital Timers
Capacity – lb (kg)75 (34)
Width – in (mm)38.5 (980)
Depth – in (mm)53.0 (1350)
Height – in (mm)77.3 (1960)
Cylinder Diameter – in (mm)37.0 (940)
Cylinder Depth – in (mm)36.0 (914)
Cylinder Volume – cu. ft. (liters)22.4 (634)
Reversing CylinderOption
Door Opening Size – in (mm)26.9 (683)
Heat Input Power165,000 Btu/hr
Gas153,985 Btu/hr
Steam36 kW
Electric
Gas Inlet Connection – in (mm)*1/2
Steam Connection – in (mm)*3/4
Air Outlet - in (mm)*8 (200)
Motor Size – HP (kW)*0.5
Fan0.5
Cylinder
Airflow - cfm (liters/sec)*800 (380)
Electrical Specs*Gas & SteamElectric
(B) 100-120V/50/60/1*12-
(X) 200-240V/50/60/1-3**7-
(N) 440-480V/50-60/3**3-
(G) 230-240V/50/60/3**-90
(L) 460-480V/50-60/3**-45
Shipping Dimensions Approx.**
Width – in (mm)**41.5 (1054)
Depth – in (mm)**56.0 (1420)
Height – in (mm)**81.0 (2060)
Gas83.5 (2120)
Steam81.0 (2060)
Electric
Net Weight – lb (kg)**715 (324)
Gas740 (336)
Steam730 (331)
Electric
Domestic Shipping Weight – lb (kg)**760 (345)
Gas800 (363)
Steam780 (354)
Electric
Agency Approvals**CSA
*Field conversions available for LP gas.
**X voltage can be connected to 1 or 3 phase power and operates on 1 phase only
Features

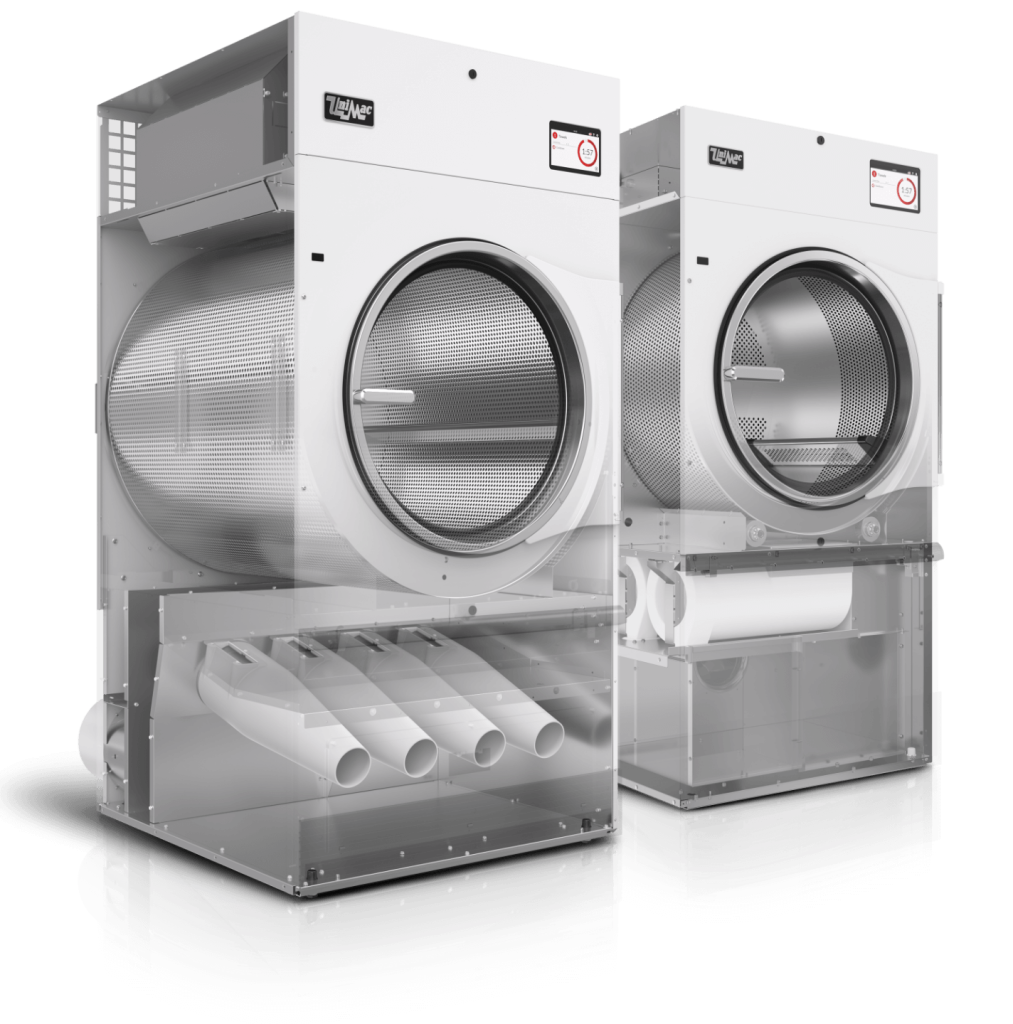

ProCapture
Dryer Technology That Helps Manage Lint
Lint doesn’t just collect; it escapes. It drifts into corners, clings to nearby equipment and cleanup turns into a recurring chore.
ProCapture™ by UniMac® is a commercial dryer lint collector within our tumble dryers that helps capture lint at the source and keep air moving through the dryer. By aiming to reduce lint-related cleanup, ProCapture helps streamline maintenance, so your team can stay on task, not on lint patrol.
Up To 98% Lint Capture*
Catch more lint at the source to create a clean laundry environment.
Commercial Dryer Lint Collector + Airflow Optimization
Built to help you manage lint and keep your dryer running the way it’s designed to.
Designed To Reduce Lint-related Maintenance
See reduced downtime and maintenance costs associated with lint accumulation.

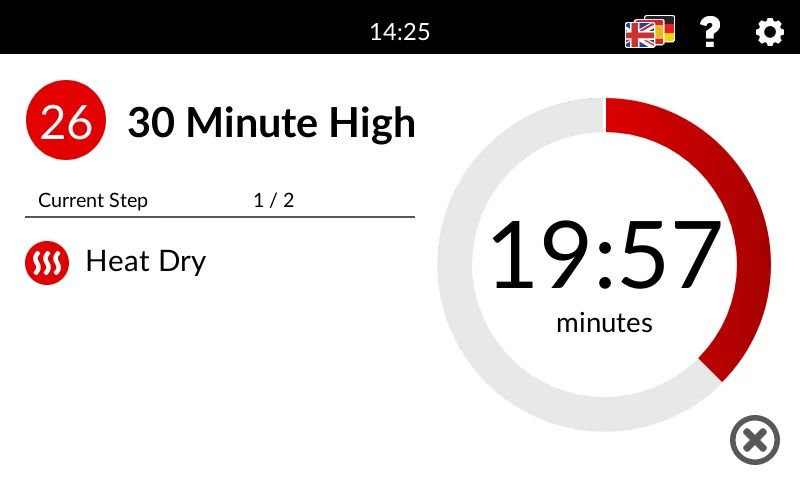

UniLinc Touch
The biggest threat to quality is staff selecting the incorrect wash cycle. UniLinc Touch virtually eliminates that threat with the most intuitive control on the market.
- 34 languages ensure all staff cannot just operate, but operate it correctly
- Real words – no codes – no ambiguity
- Training time significantly shortened (a giant bonus with staff turnover generally being high)
- Continuity – same control on washer-extractors and tumble dryers
- Ultimate flexibility means your operation is positioned for success well into the future.
- Lower utility and labor costs
M-Series
This customizable control allows any combination up to 30 auto-dry and time-dry cycles to be saved, providing easy user interface.
Dual Digital Timers
Dual Digital Timers
This economy control allows for the operator to select the ideal temperature, heating time and cooling time for each use.
